Physics Notes – On – Michelson-Morley Experiment – For W.B.C.S. Examination.

পদার্থবিজ্ঞানের নোট – মাইকেলসন-মুরলি পরীক্ষা – WBCS  পরীক্ষা।

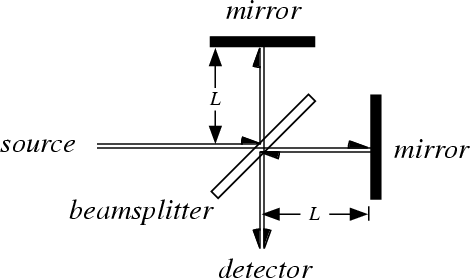

Michelson and Morley built a Michelson inter ferometer , which essentially consists of a light source, a half-silvered glass plate, two mirrors, and a telescope.  The mirrors are placed at right angles to each other and at equal distance from the glass plate, which is obliquely oriented at an angle of 45° relative to the two mirrors. In the original device, the mirrors were mounted on a rigid base that rotates freely on a basin filled with liquid mercury in order to reduce friction.Continue Reading Physics Notes – On – Michelson-Morley Experiment – For W.B.C.S. Examination.

Prevailing theories held that ether formed an absolute reference frame with respect to which the rest of the universe  was stationary. It would therefore follow that it should appear to be moving from the perspective of an observer on the sun-orbiting Earth. As a result, light would sometimes travel in the same direction of the ether, and others times in the opposite direction. Thus, the idea was to measure the speed of light in different directions in order to measure speed of the ether relative to Earth, thus establishing its existence.

Michelson and Morley were able to measure the speed of light by looking for interference fringes between the light which had passed through the two perpendicular arms of their apparatus. These would occur since the light would travel faster along an arm if oriented in the “same” direction as the ether was moving, and slower if oriented in the opposite direction. Since the two arms were perpendicular, the only way that light would travel at the same speed in both arms and therefore arrive simultaneous at the telescope would be if the instrument were motionless with respect to the ether. If not, the crests and troughs of the light waves in the two arms would arrive and interfere slightly out of synchronization, producing a diminution of intensity. (Of course, the same effect would be achieved if the arms of the interferometer were not of the same length, but these could be adjusted accurately by looking for the intensity peak as one arm was moved. Changing the orientation of the instrument should then show fringes.)

Although Michelson and Morley were expecting measuring different speeds of light in each direction, they found no discernible fringes indicating a different speed in any orientation or at any position of the Earth in its annual orbit around the Sun.

In 1895, Lorentz  concluded that the “null” result obtained by Michelson and Morley was caused by a effect of contraction made by the ether on their apparatus and introduced the length contraction equation

where L is the contracted length,  is the rest length, v is the velocity of the frame of reference, and c is the speed of light. Although the main interpretation of Lorentz  for this equation was rejected later, the equation is still correct and was the first of a sequence of new equations developed by Poincaré,  Lorentz,  and others, resulting in a new branch of physics ultimately brought to fruition by Albert Einstein  in special relativity. Einstein’s idea of space-time contraction replaced Lorentz’s interpretation of the contraction equation, and once and for all relegated ether to the history books.
