W.B.C.S. Main 2018 Question Answer – Zoology – PCR.

WBCS মেইনস ২০১৮ প্রশ্ন উত্তর  – প্রাণীবিদ্যা – মাইটোকন্ড্রিয়া – পিসিআর।

1)State the principle of PCR.

Polymerase chain reaction, better known as PCR, is one of the technologies that not only made a tremendous impact on the scientific community, but also affected many aspects of our everyday lives. More than 30 years ago, the introduction of recombinant DNA technology as a tool for the biological sciences revolutionized the study of life. Molecular cloning allowed the study of individual genes of living organisms; however this technique was dependent on obtaining a relatively large quantity of pure DNA. This depended on the replication of the DNA of plasmids or other vectors during cell division of microorganisms. Researchers found it extremely laborious and difficult to obtain a specific DNA in quantity from the mass of genes present in a biological sample. A technique that amplifies DNA through a simple enzymatic reaction, was developed by Karry Mullis at that time which enabled scientists to make millions – or even billions – of copies of a DNA molecule in a very short time.Continue Reading W.B.C.S. Main 2018 Question Answer – Zoology – PCR.

PCR has transformed the way that almost all studies requiring the manipulation of DNA fragments may be performed as a results of its simplicity and usefulness. In 1993, Mullis got Nobel Prize in Chemistry  for his dedicated work on PCR. It has been used to detect DNA sequences, to diagnose genetic diseases, to carry out DNA fingerprinting, to detect bacteria or viruses (particularly the AIDS virus), and to research human evolution. Previous techniques for isolating a specific piece of DNA relied on gene cloning – a tedious and slow procedure. PCR, on the other hand we pick the piece of DNA we’re interested in and have as much of it as we want. Within a few years PCR – took the world’s biological laboratories by storm. The polymerase chain reaction reaped the highest scientific honour for its inventor in record time as it provided a solution to one of the most pressing problems facing biology at the time – the replication of DNA.

PCR is a rapid, inexpensive and simple way of copying specific DNA fragments from minute quantities of source DNA material, even when that source DNA is of relatively poor quality. It does not necessarily require the use of radioisotopes or toxic chemicals. There are two reasons why you may want to amplify DNA.

1. You may want to simply create multiple copies of a portion of DNA which is very  rare. For example a forensic scientist may needs to amplify a small fragment of DNA from a crime scene.
2. You may wish to compare two different samples of DNA to know which is the more abundant. Because DNA is microscopic so you cannot see which sample contains the most DNA. However, if you amplify both samples at the same rate, you can calculate which sample was the biggest to begin with by establishing which is the biggest after amplification.

It is the Polymerase enzyme that drives a PCR. A polymerase will synthesize a complementary sequence of bases to any single strand of DNA providing it has a double stranded starting point. This is very useful because you can choose which gene you wish the polymerase to amplify in a mixed DNA sample by adding small pieces of DNA complimentary to your gene of interest. These small pieces of DNA are known as primers because they prime the DNA sample ready for the polymerase to bind and begin copying the gene of interest. During a PCR, changes in temperature are used to control the activity of the polymerase and the binding of primers.

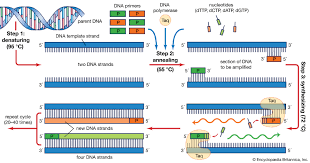

To begin the reaction the temperature is raised to 95^oC. At this temperature all double stranded DNA is “melted” in to single strands:

The temperature is then lowered to ~50^oC. This allows the primers to bind to your gene of interest. Thus the polymerase has somewhere to bind and can begin copying the DNA strand:

The optimal temperature for the polymerase to operate is 72^oC so at this point the temperature is sometimes raised to 72^oC to allow the enzyme to work faster. There are now twice as many copies of your gene of interest as when you started:

The cycle of changing temperatures (95^oC, 50^oC and 72^oC) is then repeated and two copies become four. Another cycle and four become eight, up to 30-35 cycles. After amplifying your gene into many millions of copies it is possible to run the amplified DNA out on an agarose gel and stain it with a dye to visualize it. The bigger the visible band, contains more copies of  gene of  interest that  you have created.

Working principle of PCR

As the name implies, it is a chain reaction, a small fragment of the DNA section of interest needs to be identified which serves as the template for producing the primers that initiate the reaction. One DNA molecule is used to produce two copies, then four, then eight and so forth. This continuous doubling is accomplished by specific proteins known as polymerases, enzymes that are able to string together individual DNA building blocks to form long molecular strands. To do their job polymerases require a supply of DNA building blocks, i.e.,  the nucleotides consisting of the four bases adenine (A), thymine (T), cytosine (C) and guanine (G). They also need a small fragment of DNA, known as the primer, to which they attach the building blocks as well as a longer DNA molecule to serve as a template for constructing the new strand. If these three ingredients are supplied, the enzymes will construct exact copies of the templates.

Number of copies of DNA obtained after ‘n’ cycles = 2(n+1)

It is then possible to clone DNA whose sequence is unknown. This is one of the method’s major advantages. Genes are commonly flanked by similar stretches of nucleic acid. Once identified, these patterns can be used to clone unknown genes – a method that has supplanted the technique of molecular cloning in which DNA fragments are tediously copied in bacteria or other host organisms. With the PCR method this goal can be achieved faster, more easily and above all in vitro, i.e.,  in the test-tube. Moreover, known sections of long DNA molecules, e.g. of chromosomes, can be used in PCR to scout further into unknown areas.

Parameters that affect PCR

Essential components of polymerase chain reactions:

1. 1. A thermostable DNA polymerase to catalyse template-dependent synthesis of DNA:

Depending on the ability,  fidelity,  efficiency to synthesize large DNA products,  a wide choice of enzymes is now available. For routine PCRs, Taq polymerase(0.5-2.5 units per standard 25-50 uL reaction)remains the enzyme of choice. The specific activity of most commercial preparations of Taq is ~80,000 units/mg of protein. Since the efficiency of primer extension with Taq polymerase is generally ~0.7, the enzyme becomes limiting when 1.4*1012 to 7*1012 molecules of amplified product have accumulated in the reaction.

1. 1. A pair of synthetic oligonucleotides to prime DNA synthesis:

Design of the oligonucleotide primer being the most important factor that influence the efficiency and specificity of the amplification reaction, careful designing of primers is required to obtain the desired products in high yield, to suppress amplification of unwanted sequences and to facilitate subsequent manipulation of the amplified product. Since the primers so heavily influence the success or failure of PCR protocols, it is ironic that the guidelines for their design are largely qualitative and are based more on common sense than on well understood thermodynamic or structural principles.

Design of oligonucleotide primers for PCR

In certain situations, it may be desirable to amplify several segments of target DNA simultaneously. In these cases,  an amplification reaction named “multiplex PCR” is used that includes more than one pair of primer in the reaction mix. Standard reactions contain non-limiting amount of primers, typically 0.1-0.5μM of each primer(6*1012 to 3*1013 molecules). This quantity is enough for atleast 30 cycles of amplification of a 1 kb segment of DNA. Higher concentrations of primers favour mispriming which may lead to nonspecific amplification.

1. 1. Deoxynucleoside triphosphates(dNTPs)

Standard PCRs contain equimolar amounts of all four dNTPs. Concentrations of 200-250μM of each dNTP recommended for Taq polymerase in reactions containing1.5 mM MgCl2. In a 50 uL reaction, these amounts should allow synthesis of ~6-6.5μg DNA which should be sufficient even for multiplex reaction in which eight or more primer pairs are used at the same time. High concentrations of dNTPs (>4mM) are inhibitory, perhaps because of sequestering of Mg2+. However, a satisfactory amount of amplified product can be produced with dNTP concentrations as low as 20μM- 0.5-1.0pM of an amplified fragment ~1 kb in length. To avoid problems, stocks of dNTPs should be stored at -20^oC in small aliquots that should be discarded after the second cycle of freezing or thawing. During long term storage at -20^oC,  small amounts of water evaporate and then freeze on the walls of the vial. To minimize changes in concentration, vials containing dNTP solutions should be centrifuged, after thawing, for a few seconds in a micro centrifuge.

1. 1. Divalent cations

All thermostable DNA polymerases require free divalent cations- usually Mg2+ for activity. Some polymerases will also work, albeit less efficiently with buffers containing Mn2+. Calcium ions are quite ineffective. Because dNTPs and oligonucleotides bind Mg2+, the molar concentration of the cation must exceed the molar concentration of phosphate groups contributed by dNTPs and primers. It is therefore impossible to recommend a concentration of Mg2+ that is optional in all circumstances. Although a concentration of 1.5 mM of Mg2+ is routinely used, increasing the concentration of Mg2+ to 4.5 mM or 6mM has been reported to decrease nonspecific priming in some cases and to increase it in others. The optimal concentration of Mg2+ must therefore must be determined empirically for each combination of primers and template. The preparations of template DNA should not contain significant amount of chelating agents (like EDTA or negatively charged ions like PO43-), which can sequester Mg2+.

1. 1. Buffer to maintain pH

Tris -Cl ,adjusted to a pH between 8.3 and 8.8 at room temperature is included in standard PCRs at a concentration of 10mM. When incubated at 72^oC(extension phase of PCR), the pH of the reaction mixture drops by more than a full unit, producing a buffer whose pH is ~7.2.

1. 1. Monovalent cations

Standard PCR buffer contains 50mM KCl and works well for amplification of segments of DNA >500bp in length. Raising the KCl concentration to ~70-100mM often improves the yield of shorter DNA segments.

1. 1. Template DNA:

Template DNA containing target sequences can be added to PCR in single or double stranded form. Closed circular DNA templates are amplified slightly less efficiently than linear DNAs. All though the size of the template DNA is not critical, amplification of sequences embedded in high molecular weight DNA(>10kb) can be improved by digesting the template with a restriction enzyme that doesn’t cleave within the target sequence.

When working at its best, PCR requires only a single copy of target sequence as template. More typically, however, several thousand copies of the target DNA are seeded into the reaction. In the case of mammalian genomic DNA,upto 1μg of DNA is utilized per reaction, an amount that contains ~3*105 copies of a single-copy autosomal gene. The typical amounts of yeast, bacterial and plasmid DNAs used per reaction are 10μg, 1μg and 1pg respectively.
